仿流明大功率多色灯珠& RGB灯珠
描述OVERVIEW
大功率RGB灯珠是一种 仿流明大功率全彩RGB灯珠,仿流明大功率全彩RGB三原色LED灯,由红色、绿色和蓝色LED芯片组成。它采用先进的材料和技术制造,具有出色的发光效果和可靠性。
大功率RGB led灯珠的规格多样化,功率通常在0.5W到5W之间。它们具有不同的电压和电流要求,可以根据具体应用的需要选择合适的规格。

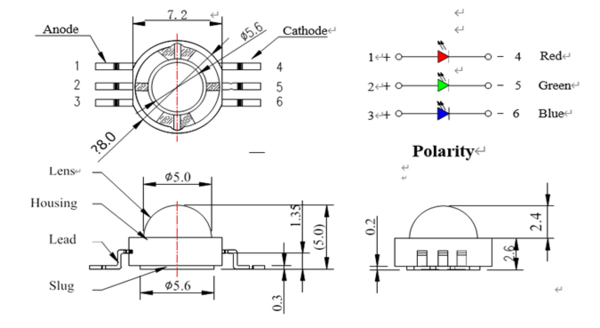

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is±0.25mm(0.01”) unless
otherwise specified.
3. Lead spacing ismeasured where the
leads emerge
from the package.
4. Specifications aresubject to change
with notice.
PERFORMANCE峰值参数
Table 1 Absolute maximum ratings for QUEENDOM high power rgb led Color Line
Absolute Maximum Rating(At TA=25°C) | Symbol | Ratings | Units |
Parameter | PD | 1000-3000 | mW |
Continuous Forward Current | IF | 350 | 700 | mA |
Peak Forward Current *1 | IFP | 1000 | mA |
Reverse Voltage | VR | 5 | V |
Thermal Resistance Junction To Board | RΘJ-B | / | °C/W |
Operating Temperature Range | TOPR | Minus 30°C To plus 60°C | |
Storage Temperature Range | TSTG | Minus 40°C To plus 80°C | |
Manual Solding Temperature | TSOL | 260°C± 10°C For 3~5 Seconds | |
ESD Sensitivity | ESD | 2000V HBM |
规格PRODUCT
Product No. | Power/W | Wavelenght(nm) | IF(mA) TEST | Φe(MCD/LM) | CRI | VF (V) Typ. | Reverse current | deg 2Ө 1/2 | Lens Type | Part No. |
PRGB3CD1 | 1W | R:620-630/G:520-530/B:460-470 | 350 | 35/80/45 | / | 2.0-3.3 | <10ua | 120 | Clear | 8541401000HP18 |
PRGB3CD3 | 3W | R:620-630/G:520-530/B:460-470 | 700 | 40/90/45 | / | 2.0-3.3 | <10ua | 120 | Clear | 8541401000HP19 |
优势FEATURES
外壳一般采用铜支架或金属材料,具有良好的散热性能。
这种LED灯具有明亮、丰富的颜色表现力和高对比度。
高效能:相对于传统的白炽灯和荧光灯,大功率仿流明LED具有更高的能效,能够节省能源。
长寿命:大功率仿流明LED的使用寿命通常可以达到几万小时,比传统照明设备更持久耐用。
应用APPLICATION
大功率RGB灯珠广泛应用于室内和室外照明领域。在室内,它们可以用于家庭照明、商业照明和舞台灯光等。在室外,它们可以被用作建筑物照明、景观照明和广告牌照明等。
此外,High Power RGB LED还可以用于汽车照明、电子显示屏和装饰灯具等领域。
总之,大功率RGB灯珠以其高亮度、丰富的颜色和广泛的应用领域而备受青睐。它们为各种照明和装饰项目提供了出色的解决方案。
