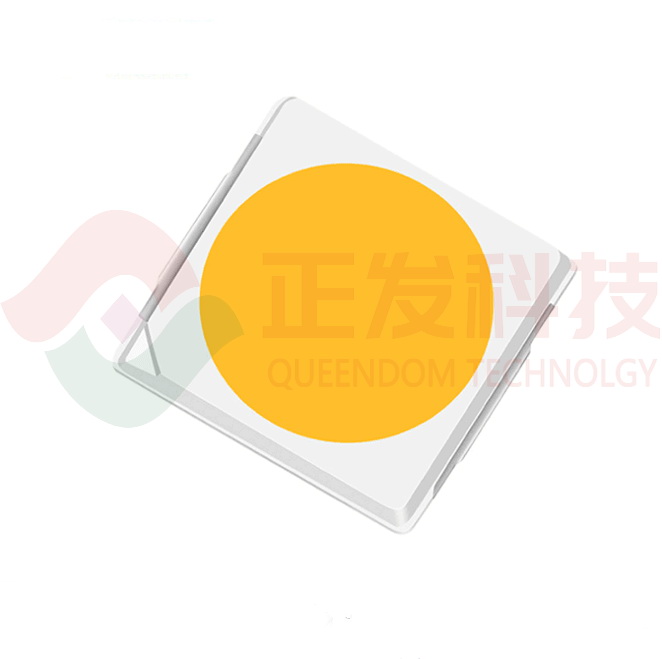

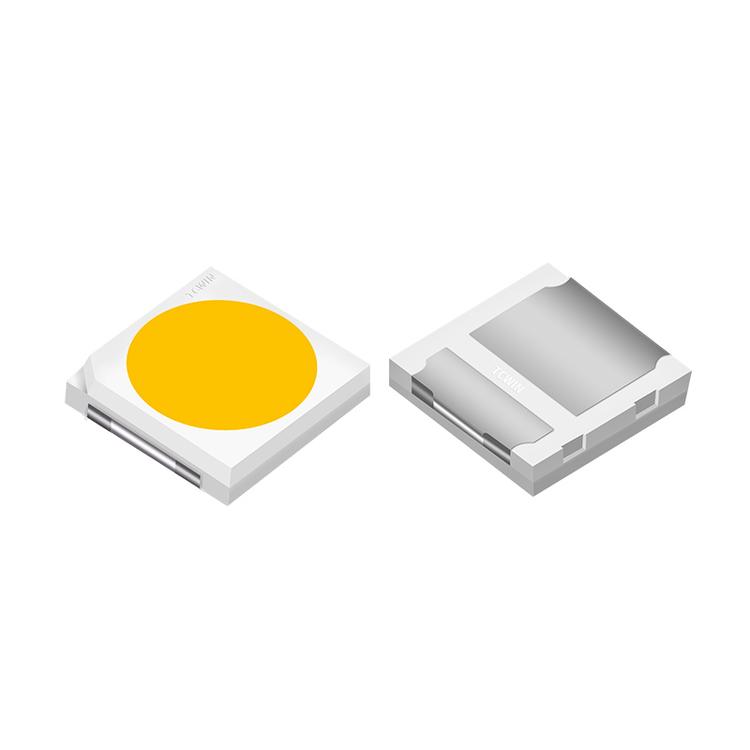

Model: S3030 LED SMD LED
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
| Type | Power/W | Wavelenght(nm)K | IF(mA) TEST | Φe(MCD/LM) | Viewing Angle | VF (V) Typ. | Reverse current | deg 2Ө 1/2 | Lens Type |
| S3030R103B | 0.2 | 620-630 | 60 | 460-600 | 120 | 1.8-2.3 | <10ua | 120 | Clear |
| S3030Y103B | 0.2 | 585-595 | 60 | 400-580 | 120 | 1.8-2.3 | <10ua | 120 | Clear |
| S3030G103B | 0.2 | 515-530 | 60 | 800-1250 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030B103B | 0.2 | 460-470 | 60 | 200-500 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103B | 0.2 | 2500-4000 | 60 | 50-70 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103B | 0.2 | 5000-8000 | 60 | 45-60 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103B | 0.2 | 9000-20000 | 60 | 35-55 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| Type | Power/W | Wavelenght(nm)K | IF(mA) TEST | Φe(MCD/LM) | Viewing Angle | VF (V) Typ. | Reverse current | deg 2Ө 1/2 | Lens Type |
| S3030R103P4C | 0.5 | 620-630 | 150 | 15-30 | 120 | 1.8-2.3 | <10ua | 120 | Clear |
| S3030Y103P4C | 0.5 | 585-595 | 150 | 13-20 | 120 | 1.8-2.3 | <10ua | 120 | Clear |
| S3030G103P4C | 0.5 | 515-530 | 150 | 35-50 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030B103P4C | 0.5 | 460-470 | 150 | 7-14 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103P4C | 0.5 | 2500-4000 | 150 | 50-70 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103P4C | 0.5 | 5000-8000 | 150 | 45-60 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
| S3030W103P4C | 0.5 | 9000-20000 | 150 | 35-55 | 120 | 2.8-3.4 | <10ua | 120 | Clear |
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
