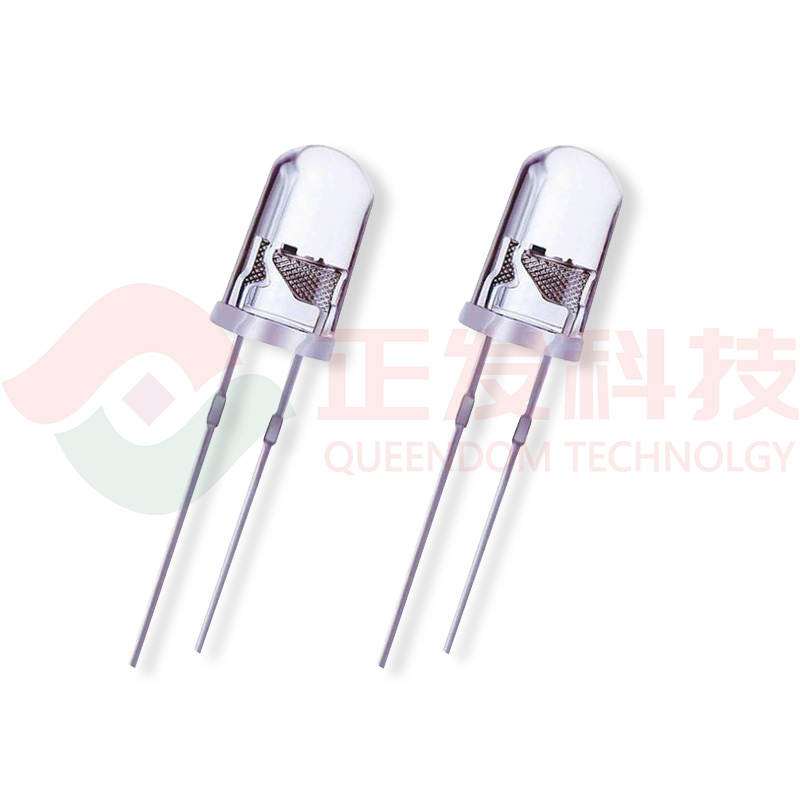

5mm UV紫光系列
规格PRODUCT

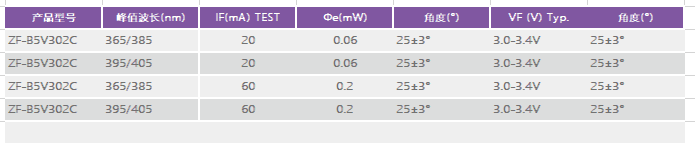

Product No. | Power/W | Wavelenght(nm) | IF(mA) TEST | Φe(MCD) | VF (V) Typ. | deg 2Ө 1/2 | Lens Type |
Qd-B5V302C | 0.06 | 365/385 | 20 | 170 | 3.0-3.4V | 25±3° | Clear |
Qd-B5V302C | 0.06 | 395/405 | 20 | 260 | 3.0-3.4V | 25±3° | Clear |
Qd-B5V302C | 0.2 | 365/385 | 60 | 300 | 3.0-3.4V | 25±3° | Clear |
Qd-B5V302C | 0.2 | 395/405 | 60 | 310 | 3.0-3.4V | 25±3° | Clear |
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIE chromaticity diagram and represents the single wavelength which defines thecolor of the device.
